Zoom Extents

Zoom to Drawing Extents

Menu:	View Zoom to Drawing Extents
Shortcut Keys:
Toolbar Icon:



The Zoom to Drawing Extents command will force the program to locate the outermost boundary of all of the entities on the drawing and display the largest possible view of the entities on the design screen.  The command does not change the actual size of entities on the drawing screen, it simply changes the magnification level making entities appear larger.

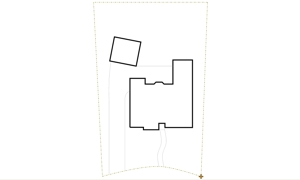

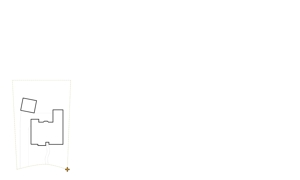

View before Zoom to Drawing Extents		View after Zoom to Drawing Extents
