Filter Sprinkler Selection
Filter Sprinkler Selection
Filter Sprinkler Selection
|
Menu:
|
Irrigation  Sprinklers
|
|
Toolbar Icon:
|
|
Sprinkler manufacturers provide a wide variety of nozzle selections to accommodate virtually any situation. Therefore, the choice of nozzles may become overwhelming. The nozzles are broken out into categories to begin filtering the selections. In some instances, you may want to limit the number of nozzle choices in each category to the nozzles you use on a regular basis to speed up the selection process.
To filter or limit the nozzles that appear in the list:
-
Under the Sprinkler Selection title bar, there is a list of the nozzles available for the selected manufacturer and category of sprinkler. To the left of each nozzle, there is a checkbox. To remove a nozzle from the list, you must first click on the checkbox to remove the checkmark.
|
|
|
|
|

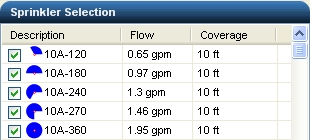

All nozzles checked
|
|

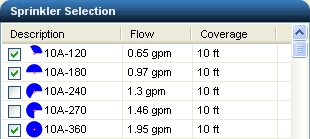

240� and 270� unchecked
|
- To filter the nozzle selections, under the Sprinkler Filter title bar choose Show Only Checked Sprinklers from the Filter Type drop down menu. The list will regenerate and any nozzle without a checkmark will no longer be visible.
|
|
|

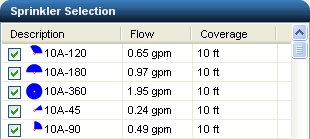

Show Only Checked Sprinklers selected with the 240� and 270� nozzles removed from the list
|
- To quickly show all of the nozzles selections again, choose Show All Nozzles from the Filter Type drop down menu. The list will regenerate displaying all of the nozzle choices whether they are checked or not.
|
|
|
Show All Nozzles selected with the 240� and 270� nozzles visible in the list
|
